Lượt xem:
177 Omron S8JXG Series

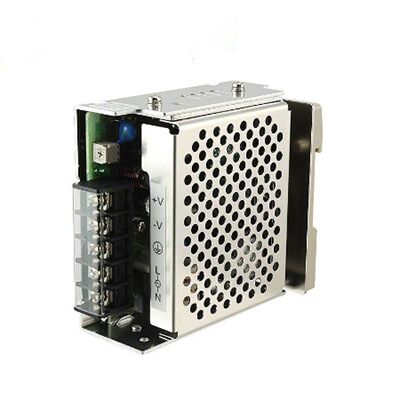

Bộ nguồn Omron Series S8JXG đã ngưng sản xuất thay thế bằng Bộ nguồn tổ ong Omron S8JX-G10048CD 2.1A 48V 100W
| Mã sản phẩm | Lắp đặt | Điện áp ngõ ra | Dòng điện | Kích thước |
|---|---|---|---|---|
| S8JX-G01505 | Front Mount | 5V | 3A | 39.5 mm |
| S8JX-G01505C | Front Mount | 5V | 3A | 39.5 mm |
| S8JX-G01505CD | DIN Rail | 5V | 3A | 50 mm |
| S8JX-G01505D | DIN Rail | 5V | 3A | 50 mm |
| S8JX-G01512 | Front Mount | 12V | 1.3A | 39.5 mm |
| S8JX-G01512C | Front Mount | 12V | 1.3A | 39.5 mm |
| S8JX-G01512CD | DIN Rail | 12V | 1.3A | 50 mm |
| S8JX-G01512D | DIN Rail | 12V | 1.3A | 50 mm |
| S8JX-G01515 | Front Mount | 15V | 1A | 39.5 mm |
| S8JX-G01515C | Front Mount | 15V | 1A | 39.5 mm |
| S8JX-G01515CD | DIN Rail | 15V | 1A | 50 mm |
| S8JX-G01515D | DIN Rail | 15V | 1A | 50 mm |
| S8JX-G01524 | Front Mount | 24V | 0.65A | 39.5 mm |
| S8JX-G01524C | Front Mount | 24V | 0.65A | 39.5 mm |
| S8JX-G01524CD | DIN Rail | 24V | 0.65A | 50 mm |
| S8JX-G01524D | DIN Rail | 24V | 0.65A | 50 mm |
| S8JX-G01548 | Front Mount | 48V | 0.35A | 39.5 mm |
| S8JX-G01548C | Front Mount | 48V | 0.35A | 39.5 mm |
| S8JX-G01548CD | DIN Rail | 48V | 0.35A | 50 mm |
| S8JX-G01548D | DIN Rail | 48V | 0.35A | 50 mm |
| S8JX-G03505 | Front Mount | 5V | 7A | 39.5 mm |
| S8JX-G03505C | Front Mount | 5V | 7A | 39.5 mm |
| S8JX-G03505CD | DIN Rail | 5V | 7A | 50 mm |
| S8JX-G03505D | DIN Rail | 5V | 7A | 50 mm |
| S8JX-G03512 | Front Mount | 12V | 3A | 39.5 mm |
| S8JX-G03512C | Front Mount | 12V | 3A | 39.5 mm |
| S8JX-G03512CD | DIN Rail | 12V | 3A | 50 mm |
| S8JX-G03512D | DIN Rail | 12V | 3A | 50 mm |
| S8JX-G03515 | Front Mount | 15V | 2.4A | 39.5 mm |
| S8JX-G03515C | Front Mount | 15V | 2.4A | 39.5 mm |
| S8JX-G03515CD | DIN Rail | 15V | 2.4A | 50 mm |
| S8JX-G03515D | DIN Rail | 15V | 2.4A | 50 mm |
| S8JX-G03524 | Front Mount | 24V | 1.5A | 39.5 mm |
| S8JX-G03524C | Front Mount | 24V | 1.5A | 39.5 mm |
| S8JX-G03524CD | DIN Rail | 24V | 1.5A | 50 mm |
| S8JX-G03524D | DIN Rail | 24V | 1.5A | 50 mm |
| S8JX-G03548 | Front Mount | 48V | 0.75A | 39.5 mm |
| S8JX-G03548C | Front Mount | 48V | 0.75A | 39.5 mm |
| S8JX-G03548CD | DIN Rail | 48V | 0.75A | 50 mm |
| S8JX-G03548D | DIN Rail | 48V | 0.75A | 50 mm |
| S8JX-G05005 | Front Mount | 5V | 10A | 40 mm |
| S8JX-G05005C | Front Mount | 5V | 10A | 40 mm |
| S8JX-G05005CD | DIN Rail | 5V | 10A | 50 mm |
| S8JX-G05005D | DIN Rail | 5V | 10A | 50 mm |
| S8JX-G05012 | Front Mount | 12V | 4.2A | 40 mm |
| S8JX-G05012C | Front Mount | 12V | 4.2A | 40 mm |
| S8JX-G05012CD | DIN Rail | 12V | 4.2A | 50 mm |
| S8JX-G05012D | DIN Rail | 12V | 4.2A | 50 mm |
| S8JX-G05024 | Front Mount | 24V | 2.1A | 40 mm |
| S8JX-G05024C | Front Mount | 24V | 2.1A | 40 mm |
| S8JX-G05024CD | DIN Rail | 24V | 2.1A | 50 mm |
| S8JX-G05024D | DIN Rail | 24V | 2.1A | 50 mm |
| S8JX-G05048 | Front Mount | 48V | 1.1A | 40 mm |
| S8JX-G05048C | Front Mount | 48V | 1.1A | 40 mm |
| S8JX-G05048CD | DIN Rail | 48V | 1.1A | 50 mm |
| S8JX-G05048D | DIN Rail | 48V | 1.1A | 50 mm |
| S8JX-G10005 | Front Mount | 5V | 20A | 50 mm |
| S8JX-G10005C | Front Mount | 5V | 20A | 50 mm |
| S8JX-G10005CD | DIN Rail | 5V | 20A | 56 mm |
| S8JX-G10005D | DIN Rail | 5V | 20A | 56 mm |
| S8JX-G10012 | Front Mount | 12V | 8.5A | 50 mm |
| S8JX-G10012C | Front Mount | 12V | 8.5A | 50 mm |
| S8JX-G10012CD | DIN Rail | 12V | 8.5A | 56 mm |
| S8JX-G10012D | DIN Rail | 12V | 8.5A | 56 mm |
| S8JX-G10024 | Front Mount | 24V | 4.5A | 50 mm |
| S8JX-G10024C | Front Mount | 24V | 4.5A | 50 mm |
| S8JX-G10024CD | DIN Rail | 24V | 4.5A | 56 mm |
| S8JX-G10024D | DIN Rail | 24V | 4.5A | 56 mm |
| S8JX-G10048 | Front Mount | 48V | 2.1A | 50 mm |
| S8JX-G10048C | Front Mount | 48V | 2.1A | 50 mm |
| S8JX-G10048CD | DIN Rail | 48V | 2.1A | 56 mm |
| S8JX-G10048D | DIN Rail | 48V | 2.1A | 56 mm |
| S8JX-G15005 | Front Mount | 5V | 30A | 60 mm |
| S8JX-G15005C | Front Mount | 5V | 30A | 60 mm |
| S8JX-G15005CD | DIN Rail | 5V | 30A | 66 mm |
| S8JX-G15005D | DIN Rail | 5V | 30A | 66 mm |
| S8JX-G15012 | Front Mount | 12V | 13A | 60 mm |
| S8JX-G15012C | Front Mount | 12V | 13A | 60 mm |
| S8JX-G15012CD | DIN Rail | 12V | 13A | 66 mm |
| S8JX-G15012D | DIN Rail | 12V | 13A | 66 mm |
| S8JX-G15024 | Front Mount | 24V | 6.5A | 50 mm |
| S8JX-G15024C | Front Mount | 24V | 6.5A | 50 mm |
| S8JX-G15024CD | DIN Rail | 24V | 6.5A | 56 mm |
| S8JX-G15024D | DIN Rail | 24V | 6.5A | 56 mm |
| S8JX-G15048 | Front Mount | 48V | 3.3A | 50 mm |
| S8JX-G15048C | Front Mount | 48V | 3.3A | 50 mm |
| S8JX-G15048CD | DIN Rail | 48V | 3.3A | 56 mm |
| S8JX-G15048D | DIN Rail | 48V | 3.3A | 56 mm |
| S8JX-G30012C | Front Mount | 12V | 27A | 110 mm |
| S8JX-G30012CD | Front Mount | 12V | 27A | 123 mm |
| S8JX-G30024C | Front Mount | 24V | 14A | 119.2 mm |
| S8JX-G30024CD | DIN Rail | 24V | 14A | 123 mm |
| S8JX-G30048CD | Front Mount | 48V | 7A | 123 mm |
| S8JX-G60005C | Front Mount | 5V | 120A | 150 mm |
| S8JX-G60012C | Front Mount | 12V | 53A | 150 mm |
| S8JX-G60024C | Front Mount | 24V | 27A | 150 mm |
| S8JX-G60048C | Front Mount | 48V | 13A | 150 mm |
| S8JX-G30005CD | DIN Rail | 5V | 60A | 123 mm |
| S8JX-G30005C | Front Mount | 5V | 60A | 110 mm |
Thông tin bổ sung
| Thương hiệu |
Omron |
|---|---|
| Thời gian bảo hành |
1 Năm |
| Điện áp ngõ ra |
48V |
| Công suất |
100W |
| Loại |
Bộ nguồn tổ ong |
| Series |
Omron S8JX-G |
