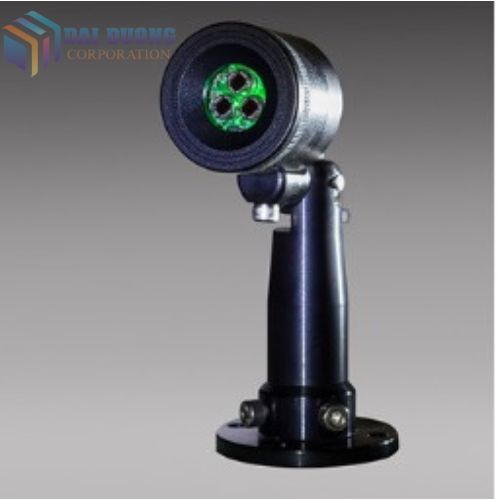

654 Cảm biến báo lửa IRT Korea IRT-020-K
| General | Kind | Flame Detector (IR3) |
| Type | DC24V Ordinary type, reusable type, indoor/outdoor type, infrared type, waterproof type Viewing angle 90° Cone, effective detection distance 30m/50m |
|
| Model | IRT-020-K | |
| Enclosure | Material | Aluminum Anodizing |
| Color | Black | |
| Electrical Specifications |
Operating voltage |
DC24V ±20% (19.2~28.8V) |
| Current | Standby 40mA when sensing, 50mA |
|
| Contact output | ON/OFF | |
| Communication port | RS-485/4~20mA (optional) | |
| Environmental Specifications |
Operating Temperature |
-40℃ ~ +85℃ |
| Operating Humidity | 0 ~ 95% | |
| Installation place | Interior / exterior of the building | |
| Other Specifications | Size | Diameter 50mm / Length 45mm |
| Weight | 120g | |
| Detection window | Sapphire |
