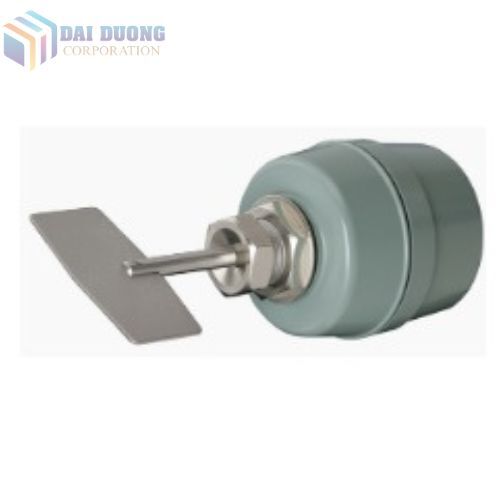

Cảm biến báo mức Shinko LV-300

Detecting torque	0.049N-m(0.5kg-m) or more (Fixed)
RPM	1rpm(min-1)(60Hz)
Action	Detector wing revolution by motor
Supply voltage	100V, 110V, 115V, 200V, 220V, 230V, 240V AC 50/60Hz Please specify.
Allowable voltage fluctuation	Within 15% of the rated voltage
Contact capacity	3A 220V AC (resistive load)
Ambient temperature	0 to 55
Wing shaft length	(L)=85mm, 100mm, 150mm, 200mm, 250mm Please specify.
Mounting	Fastened by nut (panel board: Max. 7mm)
Material	Case: Aluminium die-cast Cover: Aluminium die-cast Nut: Stainless steel Detector shaft: Stainless steel, 8.0mm Detector wing: Stainless steel t1.5mm
Lead wire	5-wire cabtyre cord, Length: 2m
Weight	(L)=85mm: Approx. 645g (L)=100mm: Approx. 650g (L)=150mm: Approx. 670g (L)=200mm: Approx. 690g (L)=250mm: Approx. 710g including 5-wire cabtire cord.
Color	Case, cover: 7.5BG4/2.5(Munsell scale)
Dust-proof/ Drip-proof	IP66 (excluding parts from the mounting nut to detector wing)
