Bơm tạo áp, thiết bị hiệu chuẩn áp suất GE Druck PV210

DPI 104 Digital Pressure Gauge Features:

• Pressure range: 0 to 30 psi (2 bar) gauge
• Eleven selectable pressure units
• 0.05% full scale accuracy
• Large, easy to read display with five digit resolution
• % pressure indication with bar graph for visual reference
• Temperature compensated accuracy from 14°F to 122°F (-10°C to 50°C)
• 0 to 5V analog output
• Pressure switch test, Min/Max, tare and alarm functions
• Adjustable mounting positions
• IDOS compatible and RS232 serial interface

PV210 Low Pressure Pneumatic Test Pump Features:

• Dual source of pneumatic pressure and vacuum
• Pressure Range: 0 to 45 psi (0 to 1250 inH₂O)
• Vacuum range: 0 to 27 inHg
• Finger-tight quick fit connectors
• Fine adjust vernier for generating extremely low pressures
• Built-in pressure relief valve for setting maximum output pressure
• Fine control needle valve for pressure release
• Thermally insulated to eliminate temperature effects
• Equipped with NPT fittings
• Lightweight, handheld, and easy to use

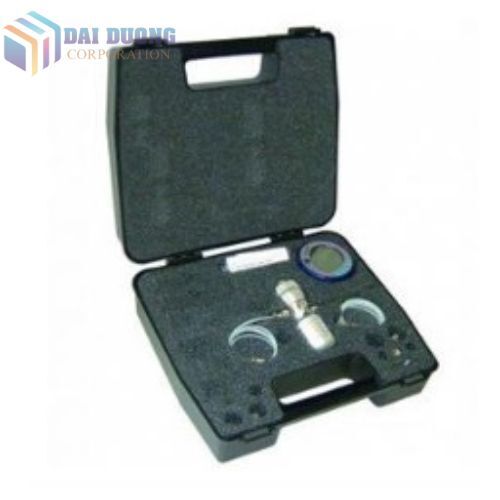

Each Unit Includes

• PV210 Low Pressure and Vacuum Pneumatic Pump
• DPI 104 Digital Pressure Gauge 30 psi (2 bar)
• Carrying Case
• (2) Nylon Hoses: Flexible, 3 ft long by 1/8 inch diameter with 1/4 inch adapters and accessories
• Seal Kit
