Lượt xem: 1423

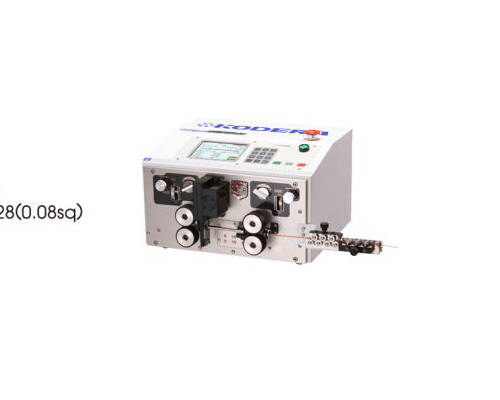

| MODEL | C371A | |
|---|---|---|
| OUTER DIMENSIONS | W430mm ×D420mm ×H270mm | |
| WEIGHT | 27kg | |
| POWER SUPPLY | AC100V～AC240V（Single phase）50Hz/60Hz | |
| POWER CONSUMPTION（100V） | 47W（Rated）215W（Max） | |
| CUTTING LENGTH | 0.1mm～99,999mm | |
| CUTTING TOLERANCES | ±（ 0.1＋0.0005×L ）mm※2 L:indicates a cutting length. | |
| STRIPPING LENGTH | FRONT END | 0.1～47.9mm |
| REAR END | 0.1～47.9mm | |
| APPLICABLE WIRES | TYPE | AVSS,VSF, IV, KV, UL,Teflon , Glass Wire, etc |
| SIZE | AWG#7（10sq）～AWG#28（0.08sq）※2 | |
| O.D. | Max φ11mm※2 | |
| WIRE FEED SPEED | Variable | |
| CUTTER MATERIAL | Ultra fine particle alloy | |
| DRIVE SUPPLY | Stepping pulse motor | |
※2. Depending on the wire type.
| Total Length | Pieces |
|---|---|
| 100mm | 7,100 |
| 200mm | 6,550 |
| 300mm | 6,050 |
| 500mm | 5,250 |
| 800mm | 4,400 |
| 1000mm | 3,950 |
| 1500mm | 3,150 |
| 2000mm | 2,700 |
| 3000mm | 1,950 |
| 5000mm | 1,350 |
Both ends stripping 3mm
Setting of speed : 9
Thin wire mode
Wire : UL1007／AWG#22
Automatic mid stripping is realized.
CMS-801A2 can handle wires with an outer diameter of up to 8mm.
It can mid strip in up to 10 different positions on a single wire.
Automation has been accomplished thus far by this revolutionary equipment.
| MODEL | CMS-801A2 |
|---|---|
| OUTER DIMENSIONS | W185mm ×D355mm ×H190mm |
| WEIGHT | 12kg |
| POWER CONSUMPTION | MAX390W 65W while idling※ |
| MID STRIPPING LENGTH | Max. up to 34mm |
| MID STRIPPING DISTANCE | Min. 48.5mm |
| MID STRIPPING POSITIONS | Max. up to 10positions |
| MAX WIRE SIZE | φ8mm |
| DRIVE | Stepping motor |
Just set up CC-100 on the left side of the CASTING series, it carries the finished wires by belt-conveyor and neatly deposits those wires on the tray.
It contributes to improving the work efficiency rate.
| MODEL | CC-100 |
|---|---|
| OUTER DIMENSIONS | W1200mm ×D340mm ×H135mm |
| WEIGHT（NET） | 10kg |
| POWER SUPPLY | AC100VorAC200V（single phase）50Hz/60Hz |
| POWER CONSUMPTION | MAX15W（AC100V） |
| O.D. SIZE | φ1mm Minimum※ |
| DRIVE | Induction motor |
| Air cylinder |
※Depends on wire type
