air-shot-hammer-RH90

AIR SHOT HAMMER RH25 RH80 RH90 RH100Z RH200

Lượt xem: 149

Mô tả sản phẩm

RH25 (Standard type)
RH80 (Standard type)
RH90 (Standard type)
RH100Z (Heavy duty type)
RH200 (Heavy duty type)

Thông tin liên hệ nhận báo giá ngay !

Hotline

Danh mục: Thiết Bị Đo Lường

Mô tả
Thông tin bổ sung

RH25

Overall length:213mm Weight:900g Grip size:φ37mm

Air consumption:135cm³/stroke Blowing power:(approx)360N

Recommended air pressure: 0.5～0.7MPa

RH80

Overall length:254mm Weight:1,300g Grip size:φ45mm

Air consumption:135cm³/stroke Blowing power:(approx)370N

Recommended air pressure: 0.5～0.7MPa

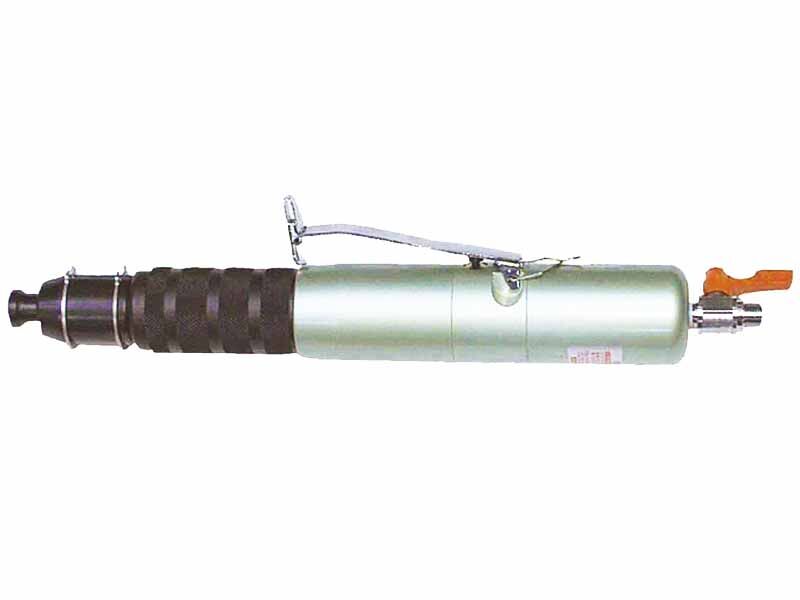

RH90

Overall length:328mm Weight:1,600g Grip size:φ43mm

Air consumption:651cm³/stroke Blowing power:(approx)460N

Recommended air pressure: 0.5～0.7MPa

RH100Z

Overall length:330mm Weight:2,100g

Grip size:φ43mm Tank size:φ72mm

Air consumption:651cm³/stroke Blowing power:(approx)470N

Recommended air pressure: 0.5～0.7MPa

RH200

Overall length:341mm Weight:2,100g

Grip size:φ51mm Tank size:φ86mm

Air consumption:653cm³/stroke Blowing power:(approx)620N

Recommended air pressure: 0.5～0.7MPa

Single blow (each operation of the lever generates one blow)

It can be used for stamping, riveting and chipping, by changing the attachments.

Optional accessories: Standard rivet snap (RVS85)
