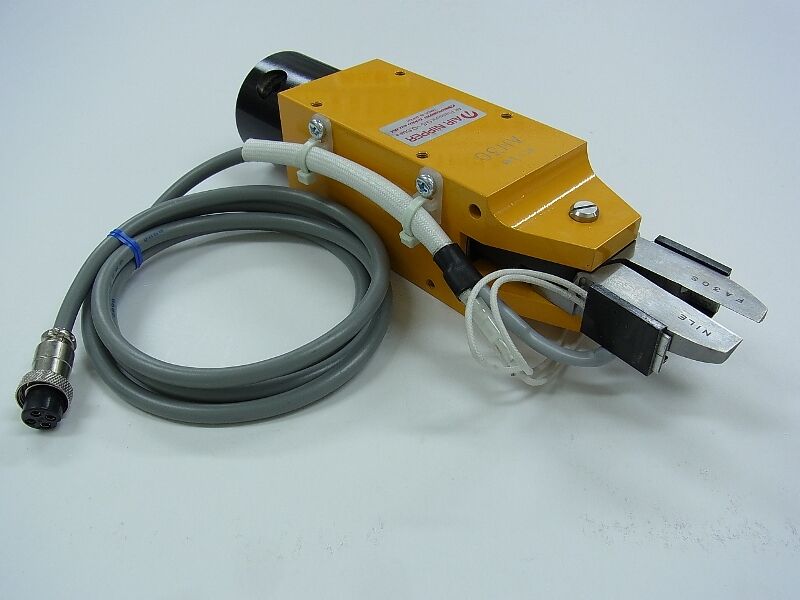

AIR HEAT CUTTERS AH20 /AH30 AH5 /AH8

[1] Suitable for cutting fragile materials such as Acryl and Glass resin, etc.

[2] Square body is easy to be set to stands or machinery.

[3] Indispensable for resin molding works.

[4] Operate through solenoid valve or foot-valve (FB70S).

[5] Cutting speed can be adjusted through air regulator.

[※6] Double-heater can set temperature in wide range between 70-200℃ to fit each resin gate at the most suitable temperature.

[※7] 3 models of replaceable blades are available to suite various kinds of gate cutting jobs.

[※6][※7]…AH20 and AH30 limited

Cutting Capacity:

[AH20]φ6mm.

[AH30]φ7mm.

[AH5]φ3mm.

[AH8]φ4mm.

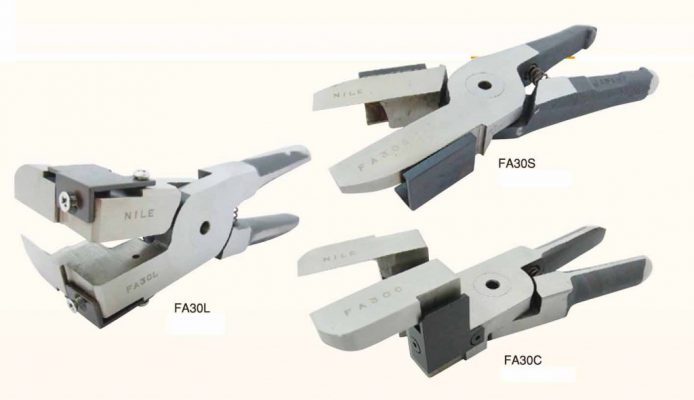

Optional blade:

[FA20S /FA20L /FA20C] for AH20.

[FA30S /FA30L /FA30C] for AH30.

[FA5] for AH5.

[FA8] for AH8.

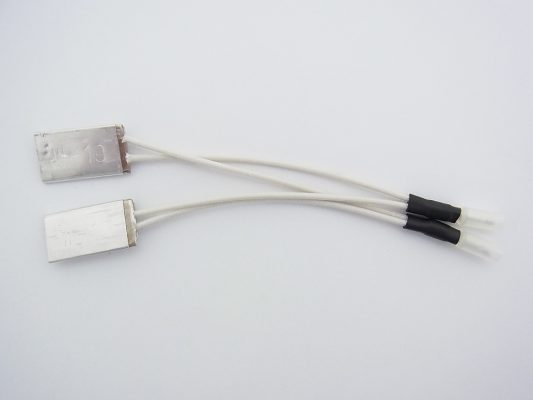

Optional heater:

[W19W] for AH20 /AH30.

[W19] for AH5 /AH8.

Optional transformer:

[HTR100W] for AH20 /AH30.

[HTR30N-100V] for AH5 /AH8.

Optional Step-Down transformer: [HDT100]. This Step-Down type transformer is requested to be used in combination with our standard transformer HTR30N-100V and HTR100W for Japanese 100V standardized power tools when operated in 220V~240V standardized overseas countries.
