AIR CUTTERS MR3 MR5 MR10 MR20 MR30A MR50AK MR50FK MP25A MP35A MP55AK

MR3

Length:112mm　Weight:90g　Grip size:φ20mm

Air consumption:31cm³/stroke　Power:(approx.)265N

Air pressure:0.4～0.5MPa

Cutting capacity: steel-wire φ0.4mm, copper-wire φ0.8mm, piano-wire φ0.2mm, soft-plastic φ1mm

MR5

Length:104mm　Weight:130g　Grip size:φ30mm

Air consumption:41cm³/stroke　Power:(approx.)390N

Air pressure:0.4～0.5MPa

Cutting capacity: steel-wire φ0.5mm, copper-wire φ1mm, piano-wire φ0.3mm, soft-plastic φ2mm

MR10

Length:124mm　Weight:200g　Grip size:φ36mm

Air consumption:105cm³/stroke　Power:(approx.)580N

Air pressure:0.4～0.5MPa

Cutting capacity: steel-wire φ1mm, copper-wire φ1.6mm, piano-wire φ0.5mm, soft-plastic φ4mm, hard-plastic φ2.6mm

MR20

Length:155mm　Weight:340g　Grip size:φ45mm

Air consumption:268cm³/stroke　Power:(approx.)1,370N

Air pressure:0.5～0.6MPa

Cutting capacity: steel-wire φ2mm, copper-wire φ2.6mm, piano-wire φ1mm, soft-plastic φ7mm, hard-plastic φ5mm

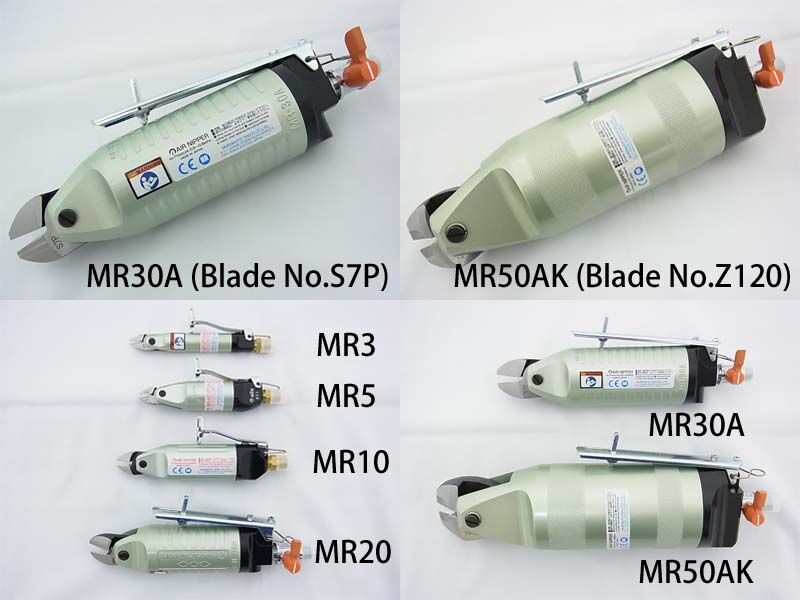

MR30A

Length:191mm　Weight:520g　Grip size:φ56mm

Air consumption:631cm³/stroke　Power:(approx.)2,740N

Air pressure:0.5～0.6MPa

Cutting capacity: steel-wire φ2.8mm, copper-wire φ3.3mm, piano-wire φ1.2mm, soft-plastic φ10mm, hard-plastic φ6.5mm



MR50AK

Length:237mm　Weight:1,290g　Grip size:φ75mm

Air consumption:1,285cm³/stroke　Power:(approx.)4,700N

Air pressure:0.5～0.6MPa

Cutting capacity: steel-wire φ4.5mm, copper-wire φ5.5mm, piano-wire φ1.6mm, soft-plastic φ11mm, hard-plastic φ8mm



MR50FK

Length:198mm　Weight:1,170g　Grip size:φ75mm

Air consumption:1,212cm³/stroke　Power:(approx.)4,100N

Air pressure:0.5～0.6MPa

Cutting capacity: soft-plastic φ12mm, hard-plastic φ6.5mm



MP25A

Length:242mm　Weight:560g　Grip size:φ45mm

Air consumption:459cm³/stroke　Power:(approx.)1,960N

Air pressure:0.4～0.5MPa

Cutting capacity: steel-wire φ2mm, copper-wire φ2.6mm, piano-wire φ1mm, soft-plastic φ7mm, hard-plastic φ5mm



MP35A

Length:283mm　Weight:830g　Grip size:φ56mm

Air consumption:1,146cm³/stroke　Power:(approx.)4,410N

Air pressure:0.5～0.6MPa

Cutting capacity: steel-wire φ4mm, copper-wire φ4.8mm, piano-wire φ1.2mm, soft-plastic φ13mm, hard-plastic φ6.5mm



MP55AK

Length:370mm　Weight:2,000g　Grip size:φ75mm

Air consumption:2,569cm³/stroke　Power:(approx.)7,740N

Air pressure:0.5～0.6MPa

Cutting capacity: steel-wire φ6mm, copper-wire φ7mm, piano-wire φ2mm, soft-plastic φ11mm, hard-plastic φ8mm



Optional blades: Initial of the blade number corresponding to the cutting of

steel-wire is the “S,P,CR,EP”

copper-wire is the “S,CR,EP”

piano-wire is the “Z”

plastic is the “F,FD”



Special blades: Even a piece of any type of special blade can be designed and manufactured to meet your particular application. Samples of actual work pieces are required on inquiry for designing and quoting.
